Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Material | Aluminium Foil |
| Thickness | 50 Micron |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Size
900 mm
Max Withstanding Temperature
110
Brand
Sunpro
Usage/application
Thermal Insulation
Emissivity
0.03
- Product code: 12.5 MIC PET / 25 MIC FOIL / 12.5 MIC PET
- Commodity: 3 PLY FOIL LAMINATES is a three layer lamination of 12μ polyester film / 25μ aluminum foil / 12μ polyester film. Used as a facing over insulation board, segments, pipe sections, etc... Primarily used in cold/cryogenic insulation systems, to prevent the ingress of moisture into the insulation.
- 3 PLY FOIL LAMINATES combines the excellent vapour barrier properties of aluminum with the outstanding mechanical and thermal characteristics of polyester film, giving an ideal, flexible and efficient barrier material, suitable for outdoor use.
Technical Specification
| PROPERTIES | UNIT | TYPICALVALUE |
| Thickness | micron | 49 |
| Density |
gr/cm3 |
1.41 for PET, 2.71 for Foil |
| Weight | GSM/sqmtr | 106 |
| Yield | sqm/Kg | 9.43 |
| Tensile strength | (ASTM D 882) | MD >100 N/mm2 |
| Emissivity | % | 0.09 |
| Humidity absorption | % | <0.3 |
| Service temperature | °C | -80 / +150 |
| Elongation | % | 54-58 % |

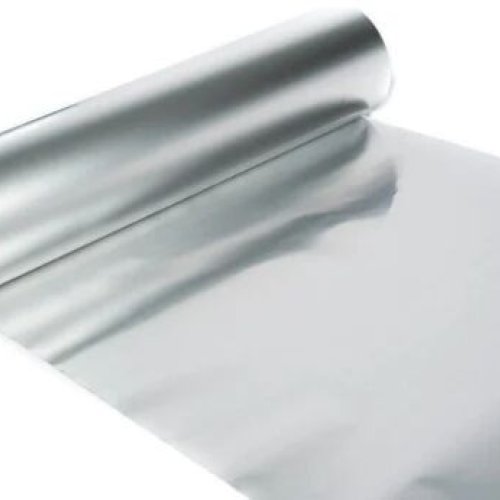

Looking for "Mylar Thermal Heat Insulation Foil" ?
